Intercept Browser: Intercept Schemes

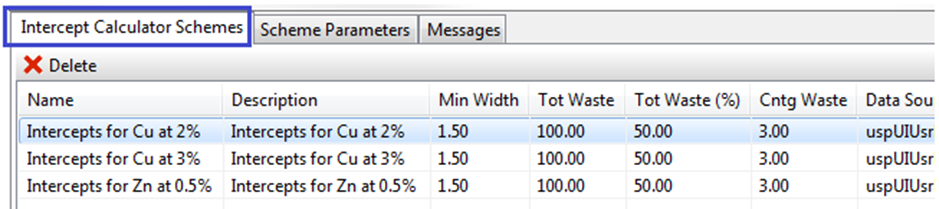

The Intercept Calculator Schemes list shows a history of all available intercept calculations for the selected drillhole.

The following metadata columns are displayed:

Column Name	Description
Name	Name of the intercept scheme
Description	Description of the intercept scheme
Min Width	Minimum width constraint applied to the intercept
Tot Waste	Maximum total waste allowed in an intercept (metres)
Tot Waste (%)	Maximum total waste allowed in an intercept (percentage)
Cntg Waste	Maximum width of contiguous waste allowed in an intercept (metres)
Data Source	A reference to the database subroutine used to retrieve the data
Ctrl Column	Name of a control column (e.g. ore zone code) used to constrain the extent of the intercept interval
Calc Date	The date and time when the intercept calculation was performed
User	The user account of the person who executed the process
