The Drillhole Data Viewer

This tool is used to view graphic reports that have been preconfigured by the OCRIS data adminstrator (see xxx). The reports are usually based on downhole drillhole data, e.g. geology, geochemistry and geophysics.

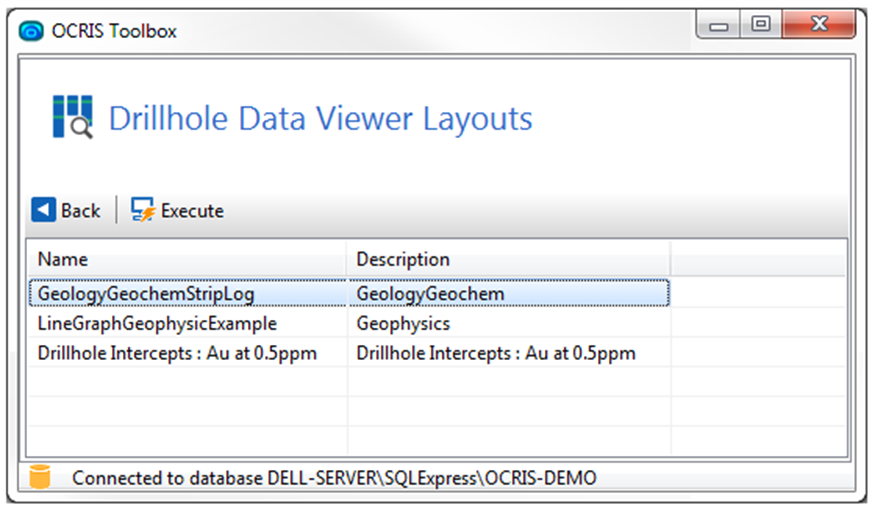

Select a report in the list and click Execute (or double-click on the row) to open it.

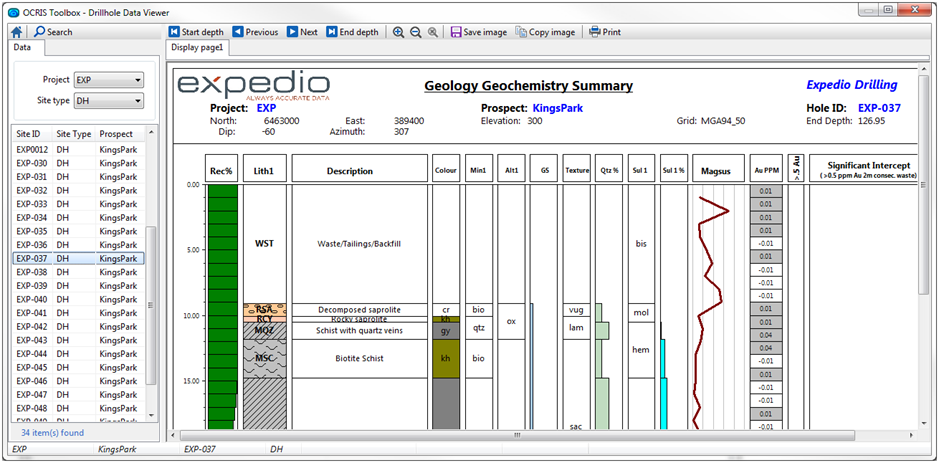

Select a drillhole in the data grid on the left to display the graphic report for that drillhole.

Use the Project and Site type dropdown lists to filter the list by project and site type.

Optionally, click the Search button on the main toolbar to search for a specific drillhole. The search dialog will be displayed.

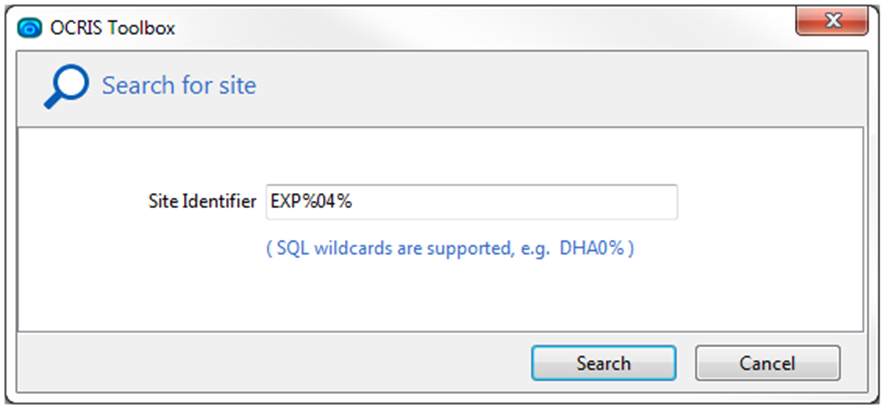

Enter the site identifier or search pattern and click Search. The search results will be displayed.

If your search returns too many rows, click Back to return to the search box and refine your search filter.

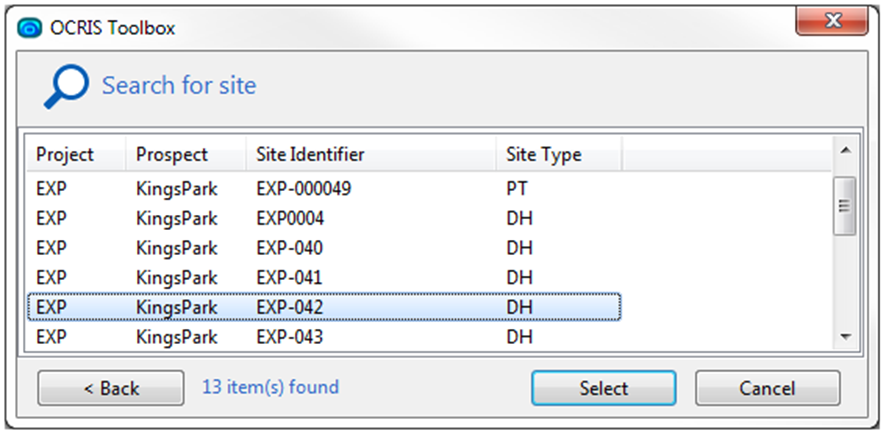

Highlight the appropriate item and click Select to switch to the selected drillhole.

The downhole report is divided into sections, based on a predefined depth range. An interval of thirty metres was used in the example shown above.

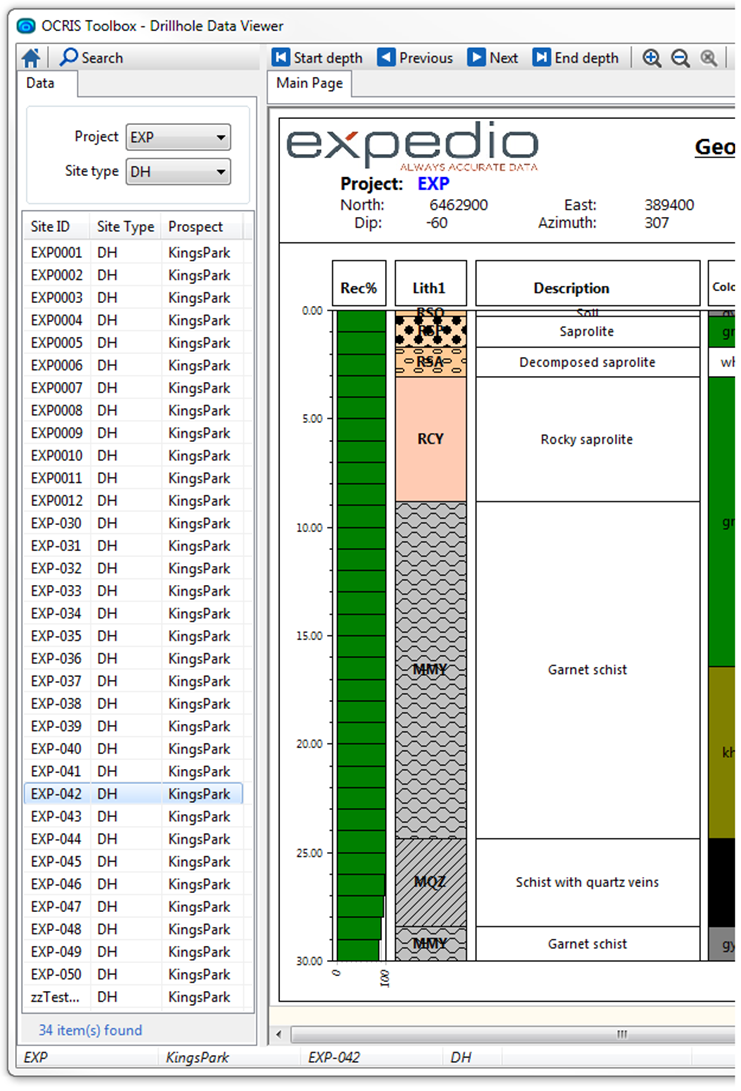

Use the Previous and Next toolbuttons to page through the report by moving up and down the length of the drillhole. Click End depth to move to the end of the hole. Click Start depth to return to the top of the hole.

Use the zoom toolbuttons to increase or decrease the size of the drawing canvas.

Click Save image to save the currently displayed image to a file.

Click Copy image to copy the current image to the Windows® clipboard, from where it can be pasted into a document or drawing.

Click Print to print the current image, or to generate a report for the selected drillhole.

The report can be saved as a PDF file by using an appropriate printer emulator. Refer to the documentation of the emulator software for instructions in this regard.
