Export Processes

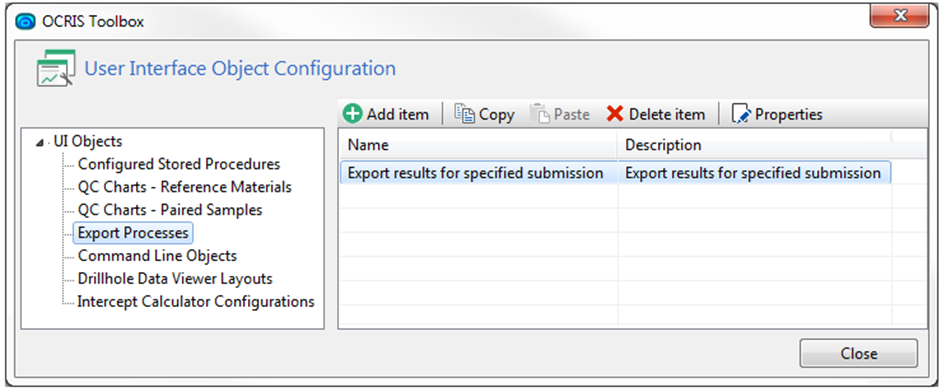

In the OCRIS Database Toolbox, an export process is configured as a User Interface Object.

• Click the Add item toolbutton to create a new export.
• Click Delete item to delete the selected export configuration from the database.
• Click Properties to modify an existing configuration.

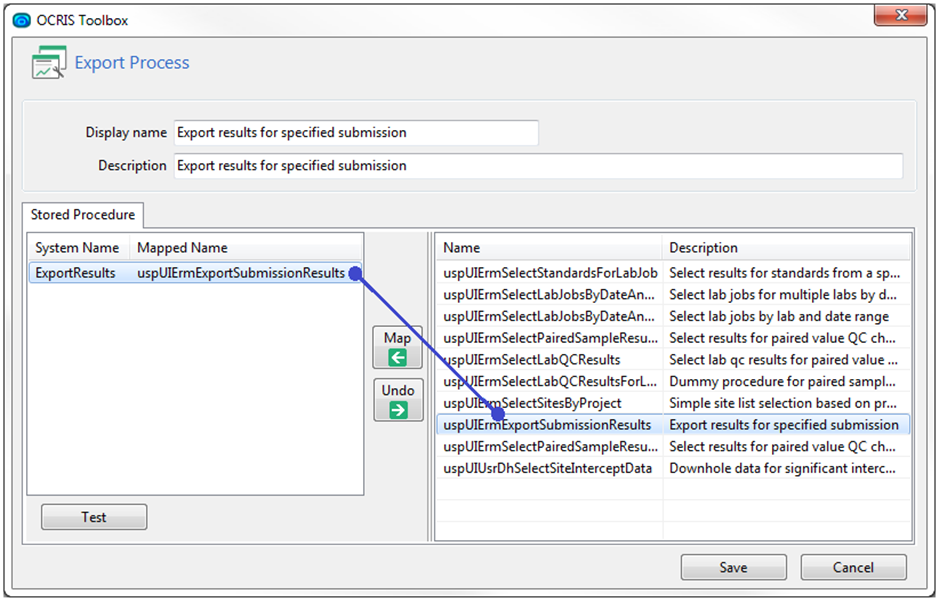

A configured export relies on a single stored procedure to provide data for export. This stored procedure has a predefined system name that is used internally by the application. As part of the UI object configuration, the system name must be mapped to an actual stored procedure in the database. Select the system name in the list on the left, select the corresponding item from the list of configured stored procedure objects in the pane on the right, and click the Map button.

To cancel the mapping, select the system name in the list on the left and click Undo.
